GER-10 is one portable, intelligent, high performance and full digitalize ground penetrating radar main machine, compatible GER whole series antennas, support most of the GPS equipment, stable and reliable complete Chinese collect system which based on Windows system are in accordance with operating habits of field operators, it has advantages at easy to carry, simple operation, better data quality and high collect efficiency, etc, widely applied in tunnel engineering, road engineering, water conservancy engineering, bridge engineering, civil engineering, military and archaeology areas.

Characteristics

● Intelligent main machine, automatically discriminate the antenna types and configure the radar parameters;

● Complete Chinese operating interface and rich real time process function;

● Save the original data, details restore field data function;

● Support exterior install GPS, add geographical coordinate information for radar data;

● Use the digital signal transmission between main machine and antenna, strong anti disturb capacity, higher data-signal-noise ratio;

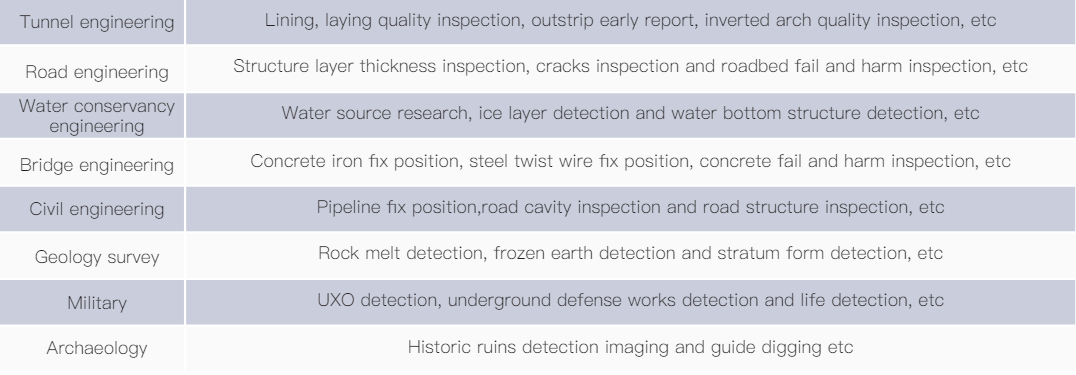

Application areas
