SER-20M type life detection radar based on electromagnetic wave reflect principle, adopt super wide band radar technology penetrating the obstacle like soil and wall to check the life features like human body breath, heartbeat and move, etc, widely applied in the emergency search and rescue in the suffering like coal mine, earthquake, snowslide and war, etc, also can used in detect the staffs who hided in the house and basement in anti-terrorism actions.

This type life detection radar adopt unified design, convenient for carriage. Mainly formed with two parts line radar detection device and display control device (PAD or laptop control terminal). The radar detection device placed close to the suspicious area, PAD or laptop realize wireless control through Wi-Fi, can convenience, safety and quickly process detection task.

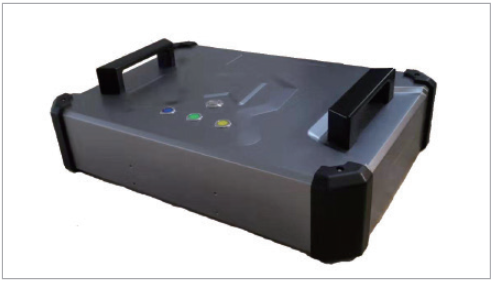

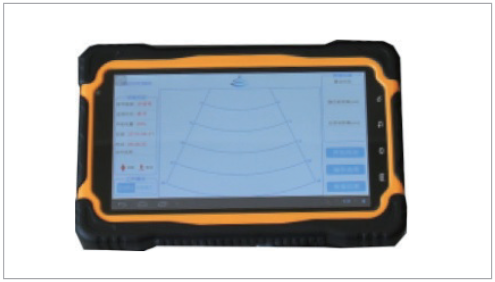

SER-20M type life detection radar	SER-20M type life detection radar display controller

Application area

● Damage rescue: search and rescue the live staffs who pressed and buried after the natural calamities like earthquake, mud-rock flow and snowslide;

● Customs inspection:search the criminals like hided in the container steak into another country;

● Prison anti escape:search the escape criminals who hided in the cargo transporting vehicles;

● Penal or anti anti-terrorism search (penetrating wall/floor/ceiling etc):process the hidden target search and detection at break area before start strike.

Characteristics

● Unified design, convenient for carriage, simple use and shell design suitable to the serious environment like firefighting, damage and accidents;

● Realize the life detection radar’s data, result transmission and detection through remote control terminal, guarantee the safety of operator.

● Adopt PS level super wide bad radar technology, higher detection sensitivity and can accurately fix position of human body in the ruins.

● The radar main machine has better waterproof and sealing performance, shell protection level achieved IP65, can be used in all weather.

● Far detection distance, space detect the static object bigger than 30m;

● Various detect objects, not only able to search the static object but also can trace the motion objects, can process 2D fix position at motion objects;

● Various detect objects quantity, can detect single objects and multiply objects;

● Strong penetrating capacity, can penetrating solid bricks wall with thickness 2.5m;

● Wide detect angle, horizontal 120°,vertical 90°, super wide detect range;

● Section layer to layer scan, high detect precision and accuracy;

● Friendly software interface and flexible operation;

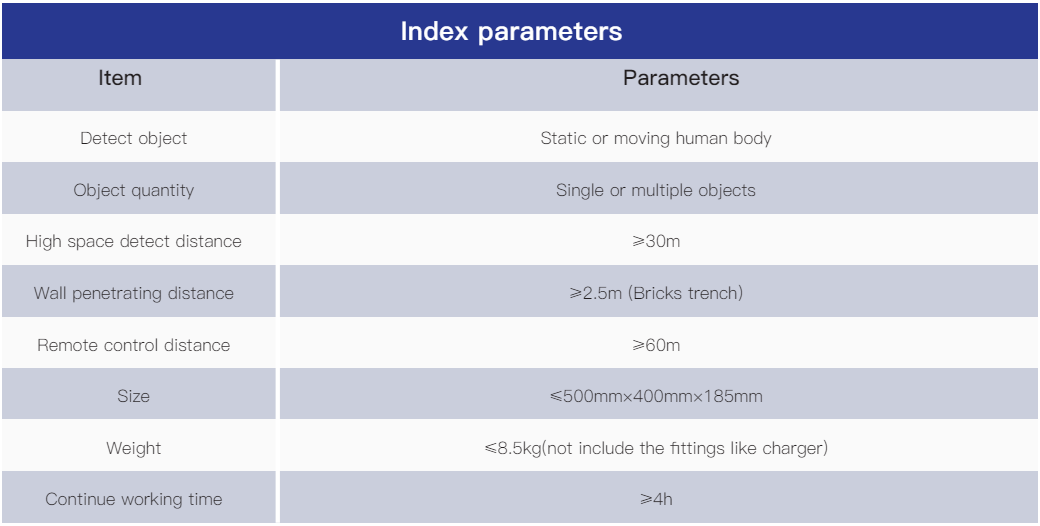

Performance index
