PLR wall penetrating & detection radar is one portable wall penetrating human body detection equipment, based on the research and development of super wide band radar technology, outer radiate wide frequency electromagnetic wave through super wide band, the wide frequency electromagnetic wave can penetrating the nonmetal agent like wood door, bricks wall and concrete wall body and continue forward spreading, reflect and generate the electromagnetic wave with human body object feature signal when meet the static or motion human body during spreading, collect, analyse and process this electromagnetic wave signal can restore the human body feature signal, example the information like breath signal of human body, target distance of motion human body and tendency, and represent this signal then realize the penetrating wall detect function.

This model series wall penetrating & detection radar can be used in army/police tactics strike, hostage rescue and wounded search and rescue;

Characteristics

● Unified design, small volume, light weight and convenient for carriage;

● Various detect objects and types, not only able to search the motion objects, but also can detect the static object.

● Wide detect angle, horizontal 120°,vertical 90°, super wide detect range;

● Far detection distance, penetrating building wall with thickness 24cm, detect distance bigger than 10m;

● Section layer to layer scan, high detect precision and accuracy;

● Friendly software interface and flexible operation, simple and flexible operation, simple, clean and visual instruction information; strong anti disturb capacity, better environment adaptability.

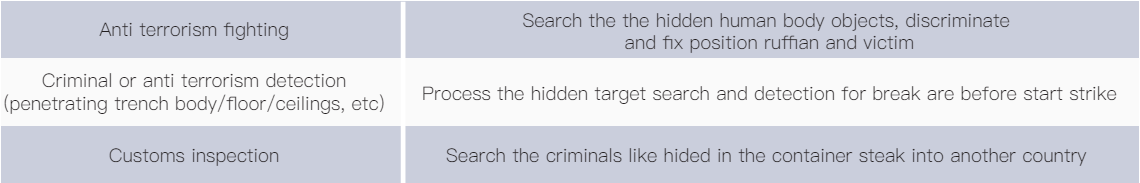

Application area

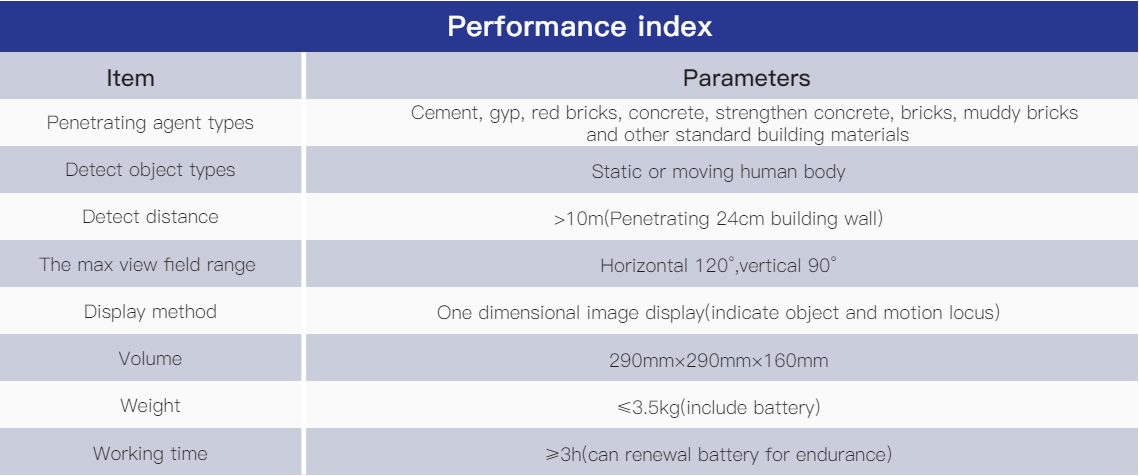

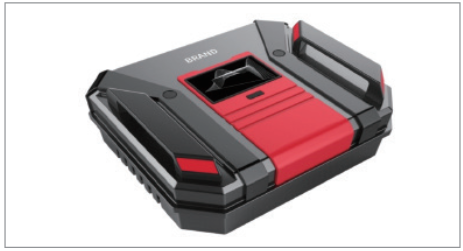

PLR-20M type wall penetrating & detection radar

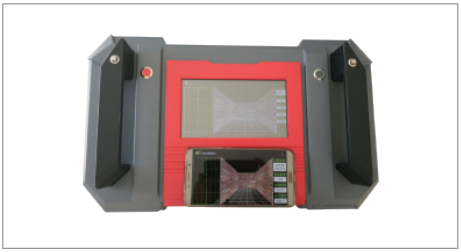

PLR-10S type wall penetrating & detection radar

PLR-20M type wall penetrating & detection radar	PLR-10S type wall penetrating & detection radar
