1 Purpose of Testing

Entrusted by Yan'an Municipal Corporation, the three-dimensional radar detection of road quality on the non-motorized lanes of municipal highways in Yan'an New Area was carried out. The task of this inspection is to carry out ground penetrating radar reflected wave detection on municipal roads, with the purpose of understanding the distribution of road diseases and providing first-hand information for municipal road maintenance and repair.

2 Using the Device

The on-site detection was carried out by GER-MIMO900/1500A36RS array 3D radar, which is a 900MHz and 1500MHz dual-frequency composite array radar, with a total number of channels of 36 and a detection speed of 20km/h.

3 Partial test results

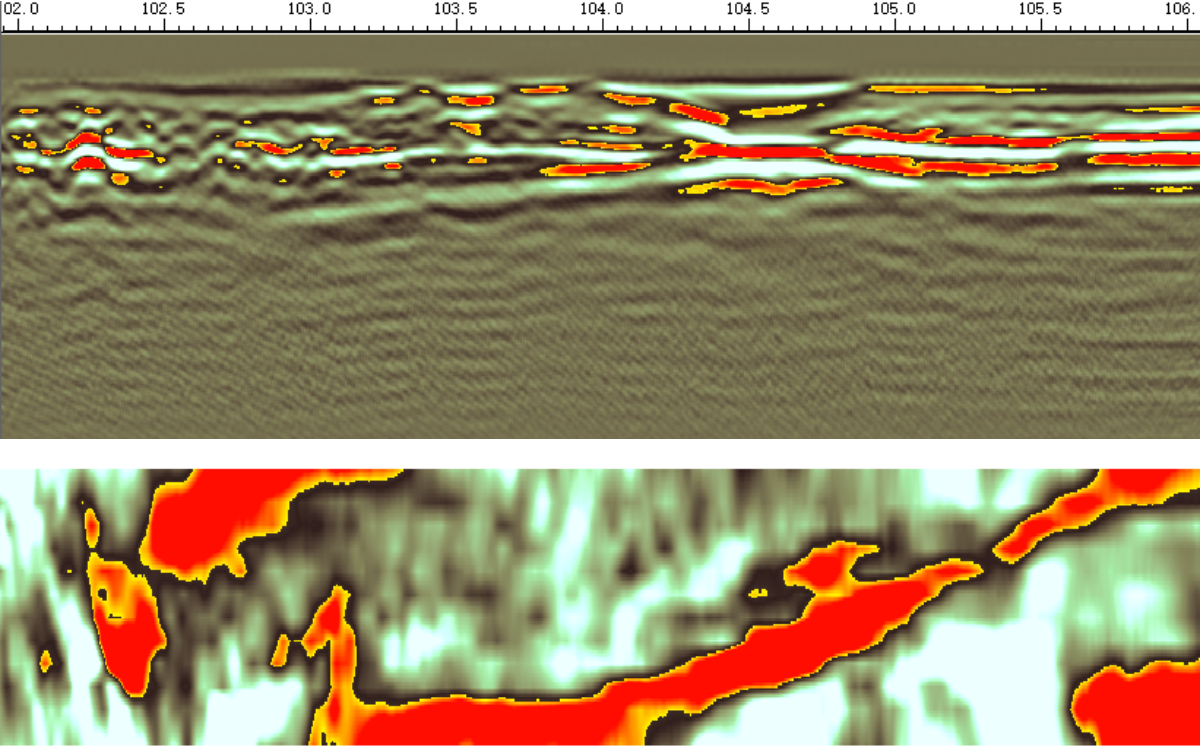

Fig.5. 2D image (top) and 3D slice (bottom)

Disease type: not dense and watery

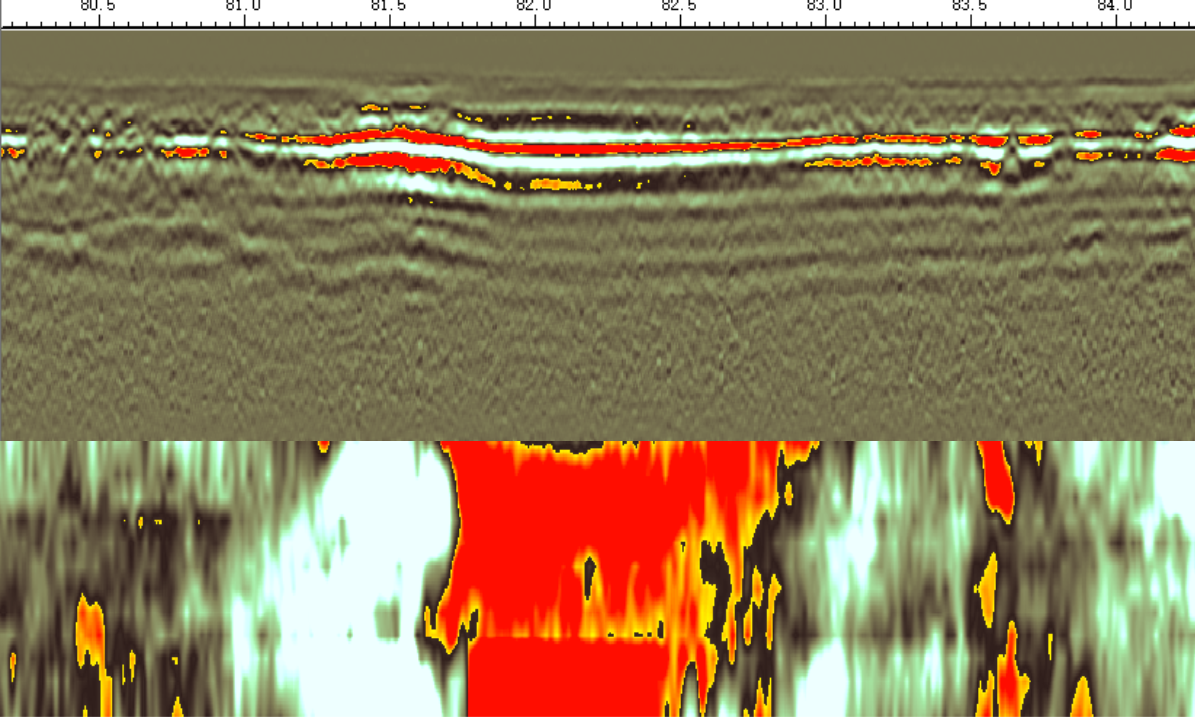

Fig.6. 2D image (top) and 3D slice (bottom)

Disease type: The manhole cover is not dense and contains water

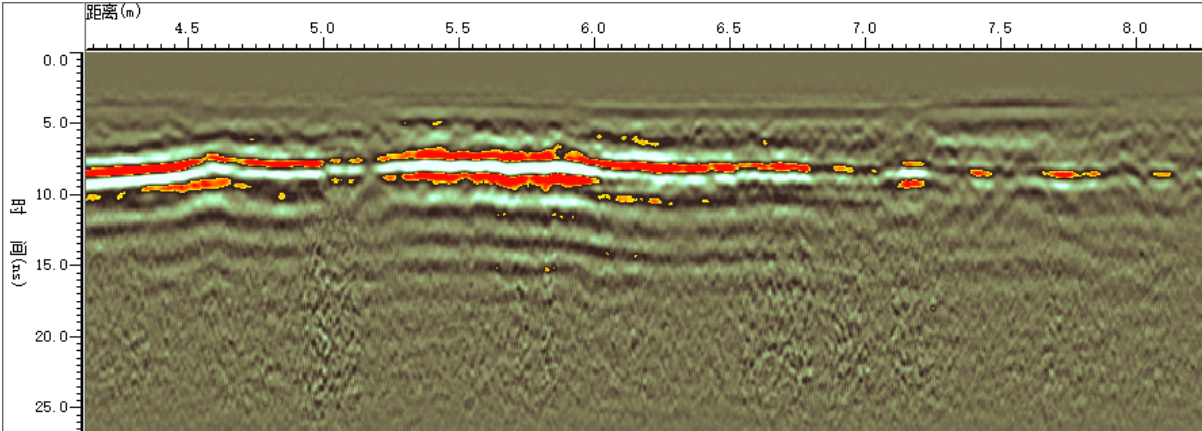

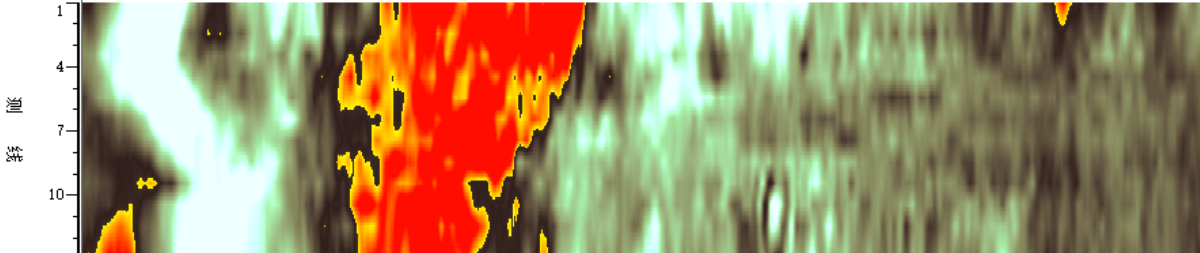

Fig.15. 2D image (top) and 3D slice (bottom)

Disease type: watery

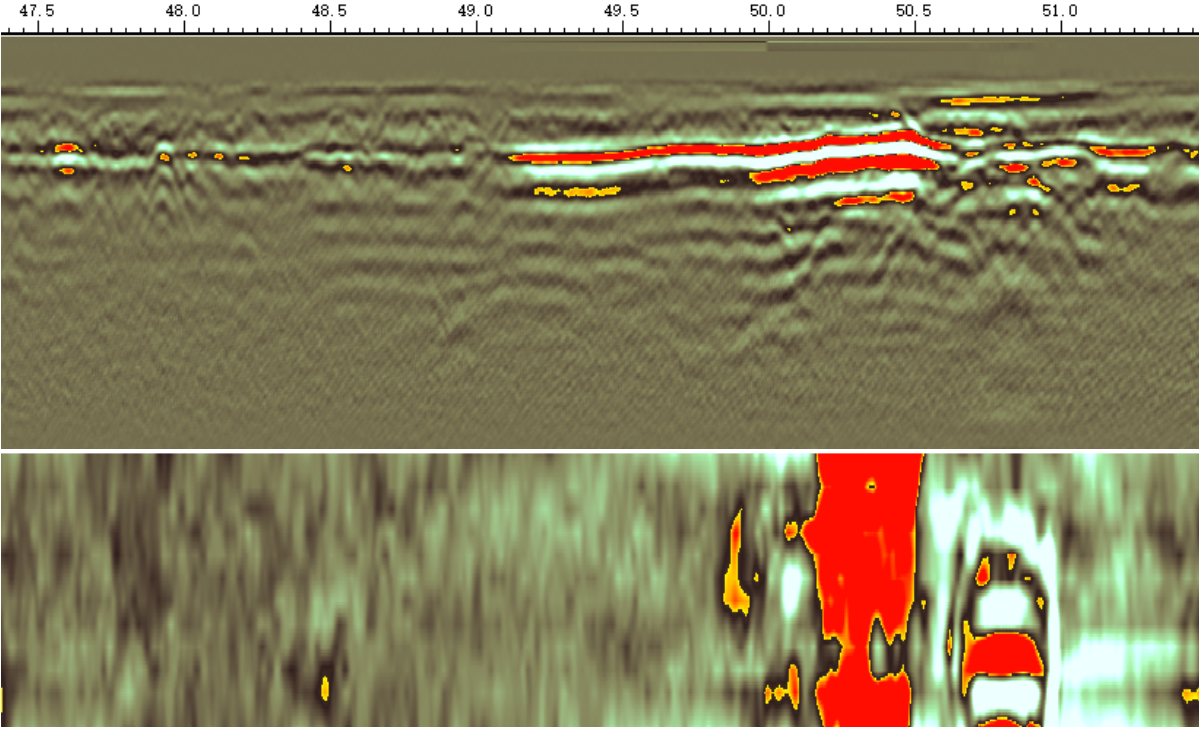

Fig.16. 2D image (top) and 3D slice (bottom)

Disease type: Structural layer hollowing
