In the process of tunnel construction, due to poor construction management, the use of unscientific construction methods and construction technology leads to the problems of insufficient thickness of the primary support and the second lining, hollowing, cavity, insufficient number of undense reinforcement mesh and arch, etc., which brings certain safety hazards to the operation of the tunnel. The use of the GER-10 ground penetrating radar can effectively detect diseases in the lining. The following is the measured data of GER-10 in tunnel lining inspection.

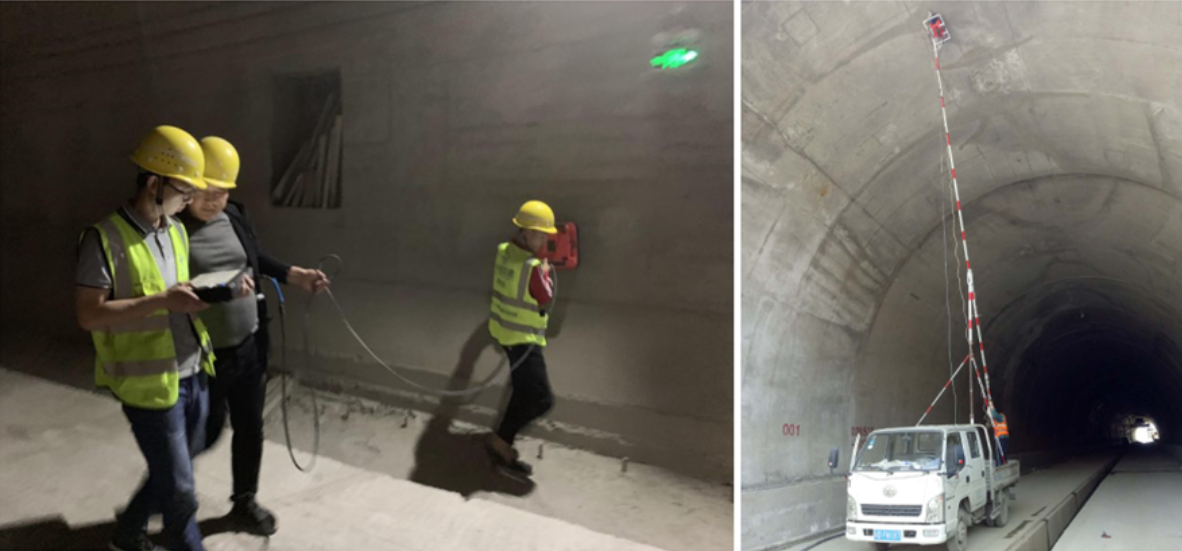

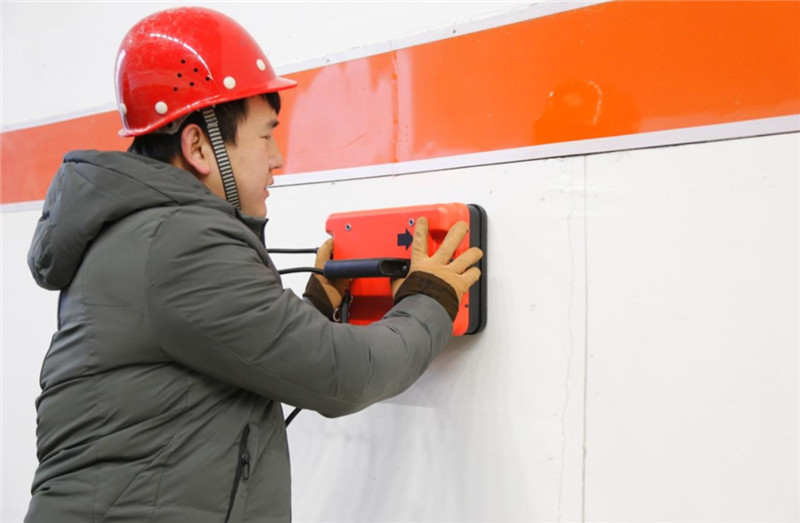

GER-10 Ground Penetrating Radar Field Inspection Photo

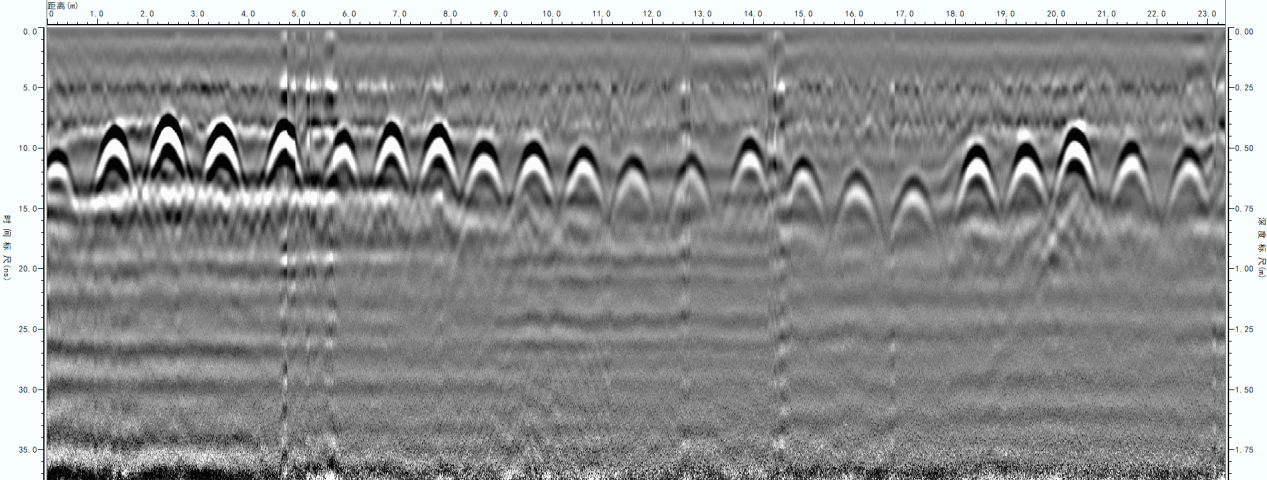

GER900A antenna detects data on secondary lining voiding and voiding

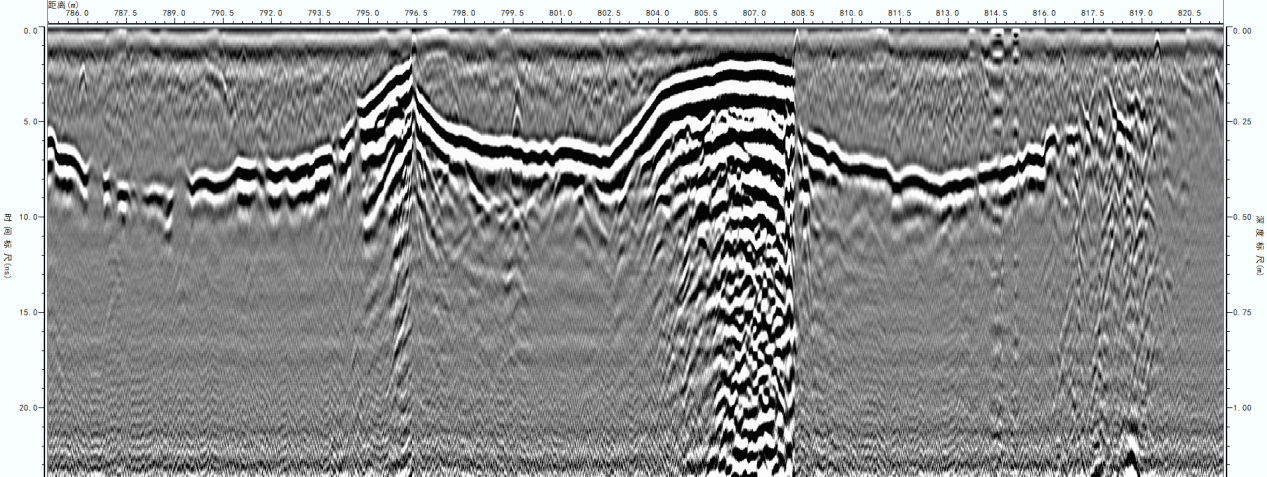

GER900A antenna second lining detects non-dense data

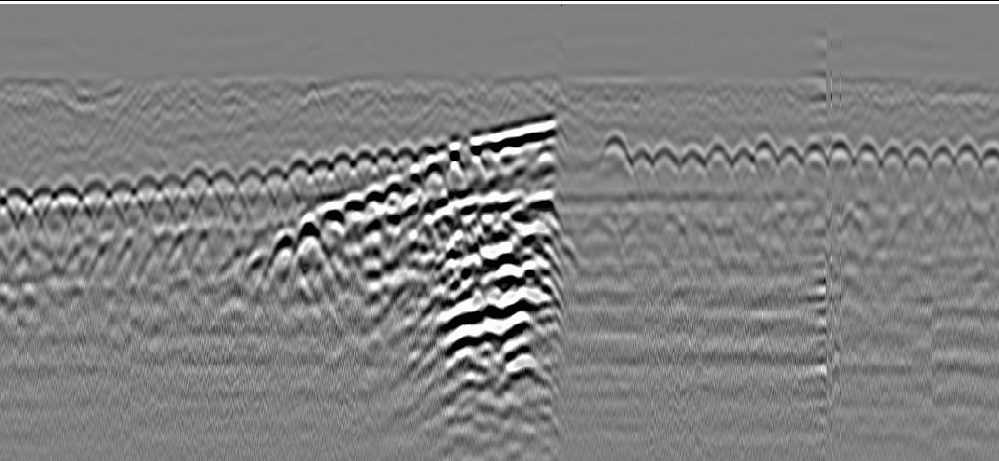

GER900A antenna to detect the distribution of reinforcement mesh and arch data

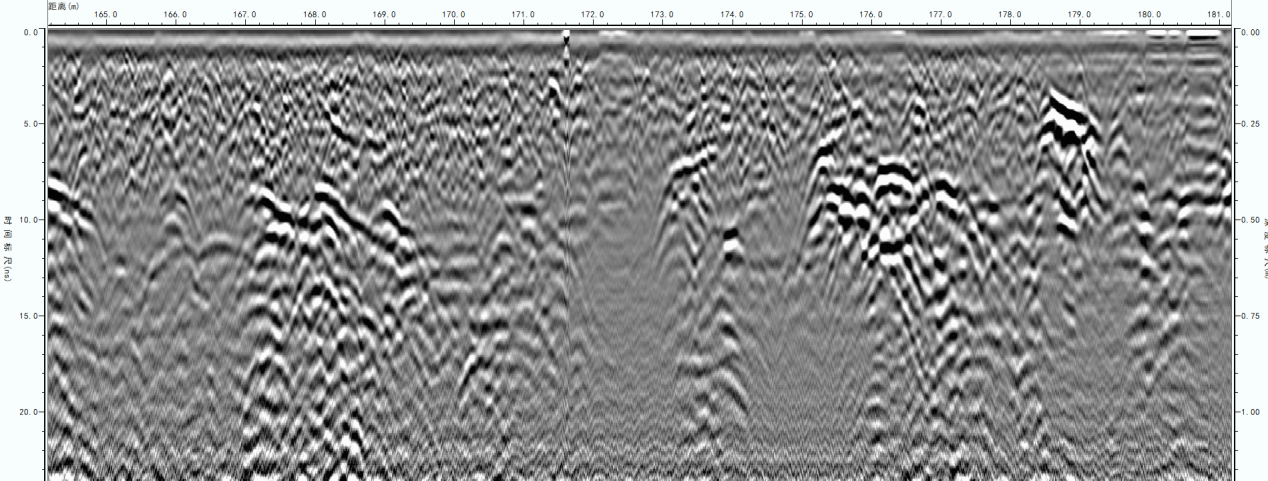

GER900A antenna to detect the void data of the secondary lining reinforced concrete

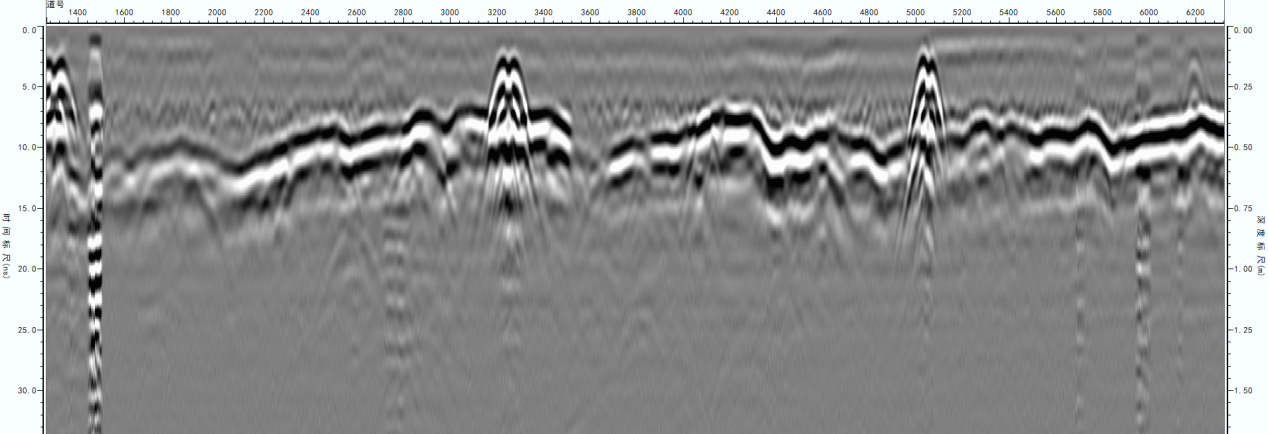

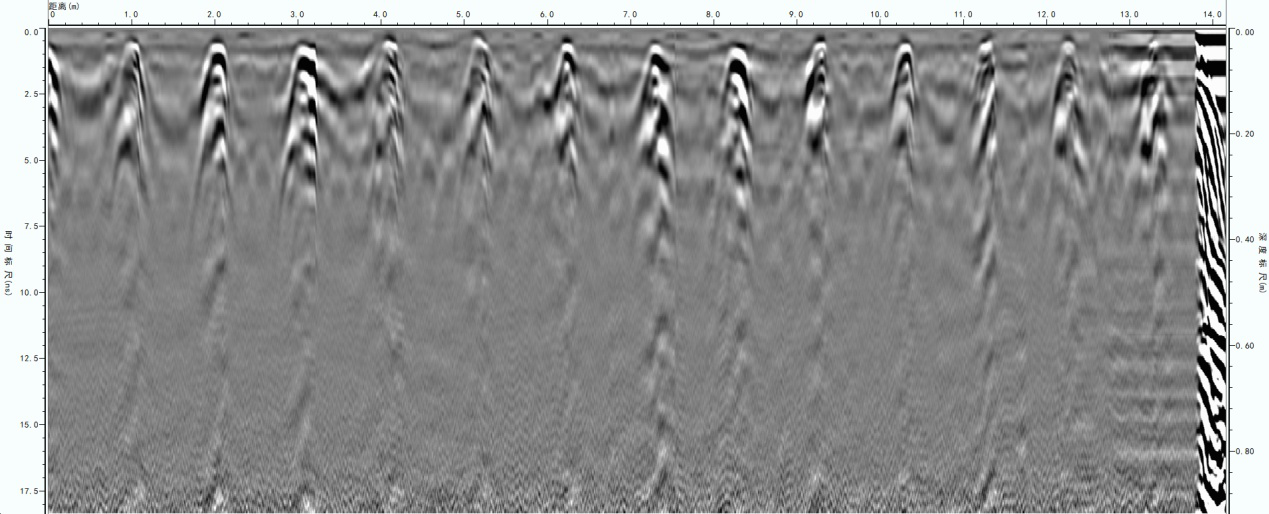

GER900A antenna primary arch distribution detection

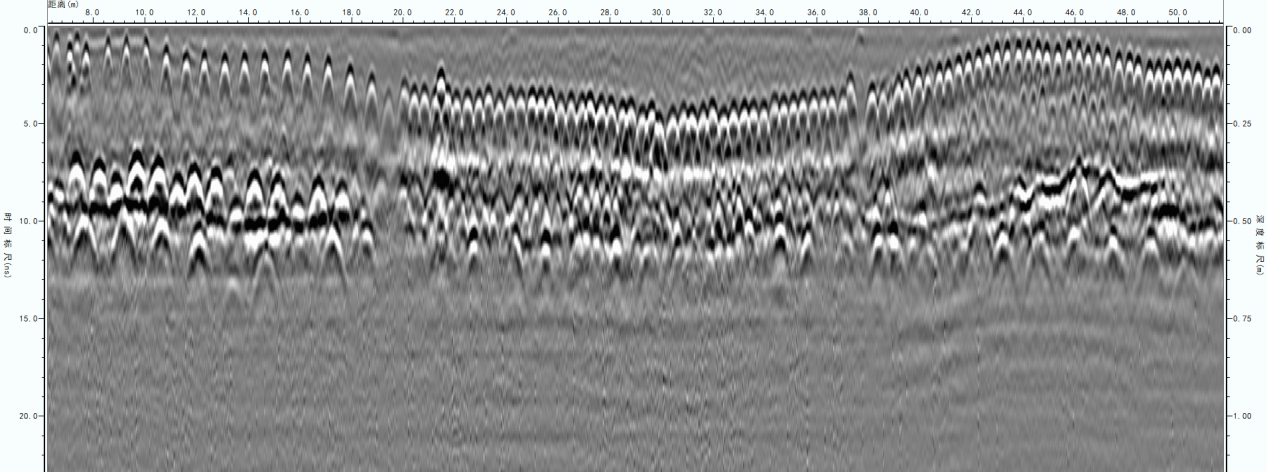

GER400A antenna detects the data of the arch distribution

GER400A antenna detects the data of the two liner emptying
