GER series ground penetrating radar data process explain software GER2 is one syn data process software which aim at GER series common ground penetrating radar, able to process the operations like data transmit, data loading, data display and data process the ground penetrating radar data which collected by GER series products and international main other formats ground penetrating radar data, convenient for user find the abnormal information in the radar data and generate the follow report documents which are in accordance with national standards, this is one important tool for GER ground penetrating radar data process and analyse. The whole interface of software shown as the picture:

Function

The software divided into "Menu column", "Engineering column and source manager column", "Radar section area", "Amplitude curve, layer thickness curve, abnormal distribute diagram output column", "Single way column" and "Status column", total 6 display areas, finish the syn analyse the radar data through check the content in each area.

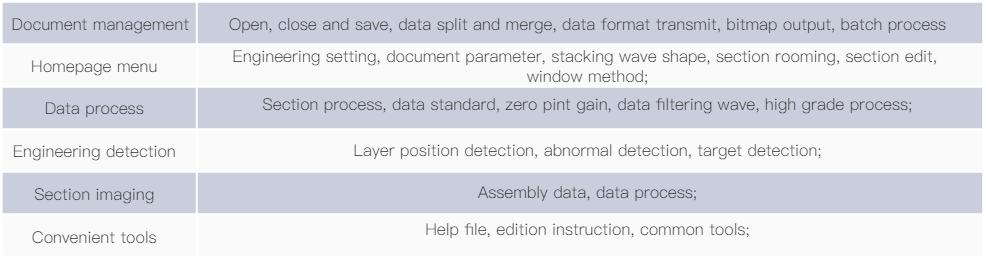

The main function of this software as below:

Characteristics

● Complete Chinese display interface, complete suitable to people’s operating habits, simple and easy to learn.

● Adopt engineering document manage at radar data, can transmit the one time tested data into appointed engineering, convenient for manage, maintain and check this time tested data also can transmit the multiply times tested same position data into the appointed engineering, convenient for user contrast the geology condition change status of this area under different time.

● Multiply data display methods, provide false color picture, stacking drawing(include the color stacking wave) display method, can be more better present the display effect at low frequency antenna collected data at geology survey, outstrip early report, archaeology research and color stacking wave.

● Have most of international popular ground penetrating radar data process method, and provide simple and easy data process and batch data process function aim at different level users, even though the users not know well about ground penetrating radar but still can easily process the ground penetrating radar data after simple train.

● Multiply test report output function, software provide layer thickness detection, abnormal detection and target detection function, make users convenient for automatically detect and manually mark various objects(layer thickness, abnormal and target), and generate the test report which are in accordance with national standard, convenient for user draw up the follow reports.
