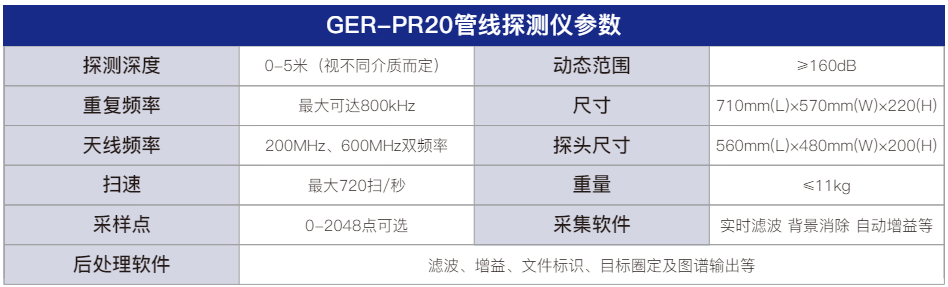

The GER-PR20 pipeline detector adopts dual frequency composite technology, integrating antennas with two center frequencies of 600MHz and 200MHz into one probe. Compared with a single frequency probe, it can simultaneously meet the requirements of detection depth and resolution. A single scan can detect both shallow buried small diameter pipelines and deep buried large diameter pipelines, which not only improves detection efficiency but also greatly improves pipeline recognition rate through the comparison of high and low frequency antenna detection data.

● Features and functions

Equipped with wireless/wired data transmission function

● Multiple data transmission methods ensure effective radar data transmission

Equipped with GPS data interface

● Real time positioning of pipeline ground penetrating radar position

High and low frequency combination antenna for fast and efficient measurement

The 200MHz antenna has strong penetration ability and can detect deep pipelines. The 600MHz antenna has high resolution and can detect smaller pipelines

● Fallback positioning quick marking, positioning pipeline position

When a pipeline is discovered, the fallback positioning function can directly mark the position of the pipeline

● Quick folding structure

Quick folding, folding, and unfolding functions of pipeline systems

● Encoder built-in mechanism

The antenna comes with four wheels and is equipped with a built-in ranging and dual wheel linkage device

GER-10 radar host

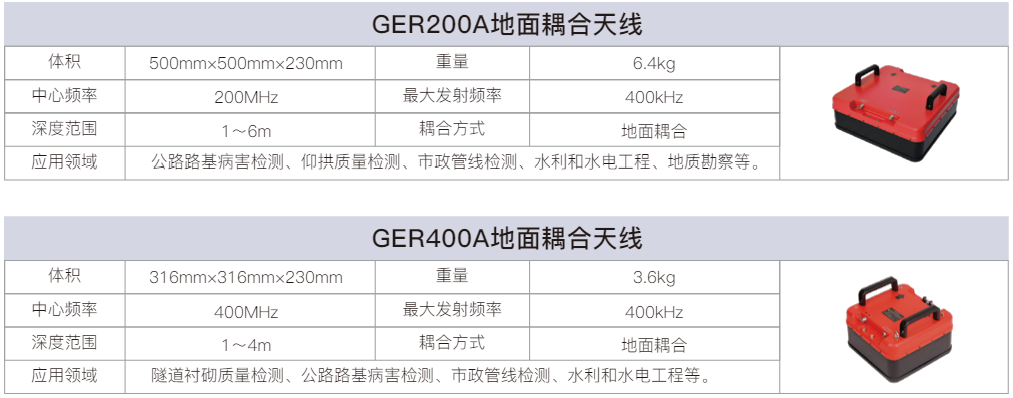

Supporting dedicated antenna

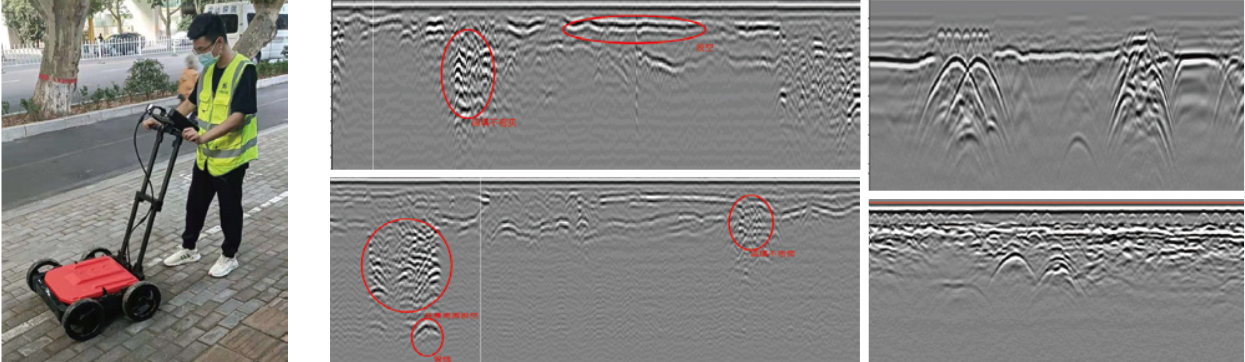

Detecting Realistic Scenery and Effects
