GER-MIMO 3D array ground penetrating radar system is one high integration array ground penetrating radar 3D imaging detection system. Adopt main machine, array antenna integration unified design, more convenient and flexible use, military level design and anti vibration actions, guarantee the stability and reliable of array radar system use under complex situation.

The perfect channel uniformity guarantee the imaging effect of detection, it has the advantages at convenient use, simple data process, easy image judgement and easy to fix position, able to applied in the imaging detection like airport inspection, tunnel engineering, road engineering, water source engineering, bridge engineering, civil engineering, military and archaeology and other areas.

Main application

● Airport inspection: airport runway harm and degas inspection, runway quality inspection and evaluate.

● Highway inspection: highway harm, depth and area range inspection, roadbed status inspection and research, structure layer sediment and damage situation inspection.

● City road: road harm detection, road cavity detection and imaging.

● Pipeline detection: pipeline common survey and pipeline under road 3D imaging.

Characteristics and function

1) Radar main control system and antenna array unified design, small volume, light weight and low power consume;

2) Use network cable process data transmission, simple and common wiring, convenient for use equipment;

3) Adopt 10V-18V exterior DC power supply, high compatible;

4) Single frequency array, multiply frequencies array design completely guarantee multiply use requirements and detection effect;

5) MIMO array antenna design, more bigger antenna density, more higher integrate ratio and more better imaging effect;

6) Quick detect speed and higher data collect efficiency, better uniformity at channel and section data, evenly interval;

7) The real time collect software can be installed in the hand equipment terminal like laptop, convenient for carry and use;

8) Real time collect software have the basic radar data process function like filtering wave, remove zero deviation and background eliminate, and can real time cut imaging;

9) Complete Chinese interface, friendly interface and radar parameters intelligent adjustment, needn’t too much manually join and simple operation;

10) Have the functions at real time vehicle speed display, over-speed alarm and weak GPS signal alarm, etc;

11) Have the data replay function, able to completely restore the collecting process;

12) Real time display the radar depth cutting with appointed depth on the inspection pathway, clear detection result;

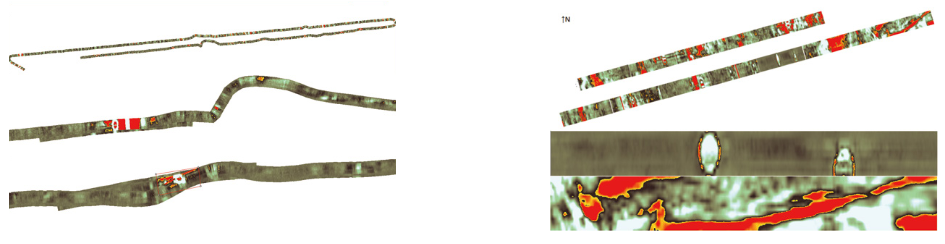

13) Automatically display the GPS locus of detection and storage data according to GPS position information, correct the predict measure line of locus then achieve the purpose at completely covered detection;

14) Non covered area among the measured line can process interpolation handle, form the all area covered data and output the all area image.

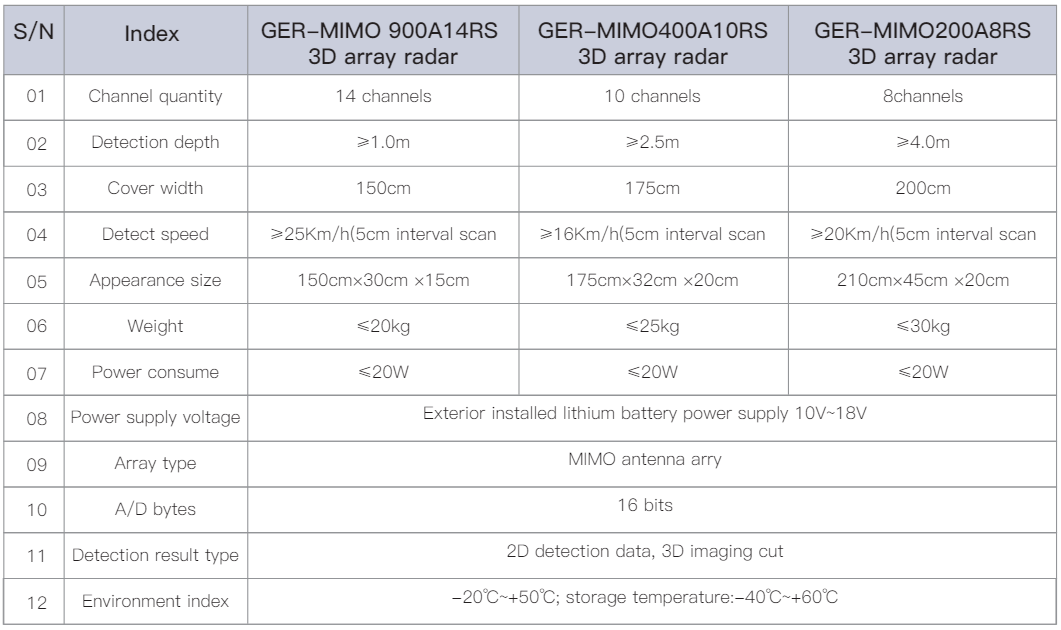

GER-MIMO 3D array ground penetrating radar technical index
