The use of vehicle-mounted GER2000A or GER1500A air-coupled antennas can be used to quickly and continuously evaluate the thickness of the road asphalt layer and the water-stabilized layer, which is similar to the traditional one Compared with the core sample method, it has the advantages of less destructiveness, high detection efficiency and continuous data.

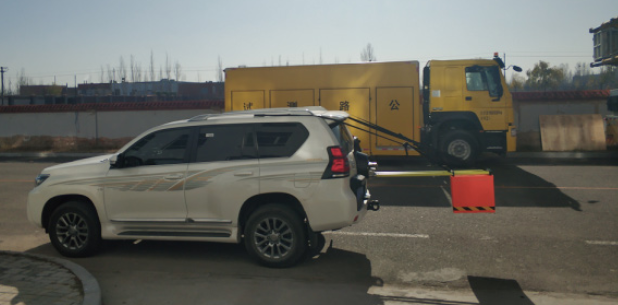

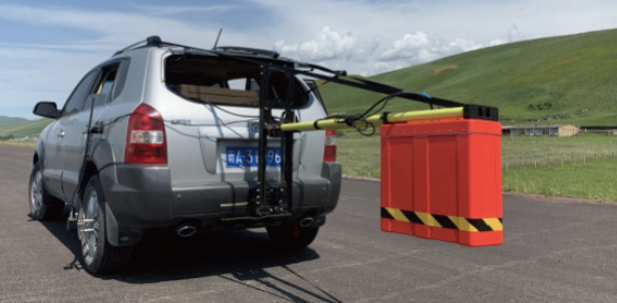

A GER2000A-air coupling antenna was used for road acceptance inspection	A GER2000A-air coupling antenna was used for road acceptance inspection

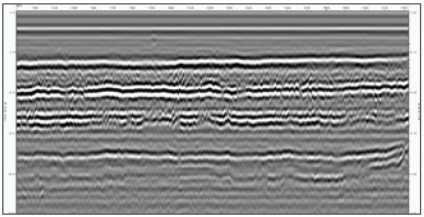

Qingdao Binhai Avenue asphalt layer thickness detection	Detection of road structure layer thickness in Hohhot Economic Development Zone

For the road with high attenuation characteristics of the concrete structure pavement, the GER900A antenna is about 6cm away from the ground for rapid detection, which can be used to detect the concrete road Concrete thickness and defects are continuously and quickly detected, and the concrete road is evaluated as a whole. It can also be used in this way to carry out the road structure layer and deep subgrade Detect and obtain the thickness and defects of the structural layer of the road.

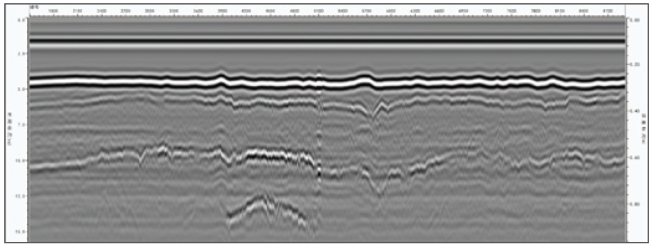

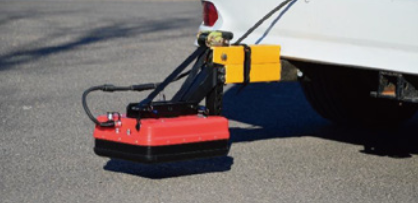

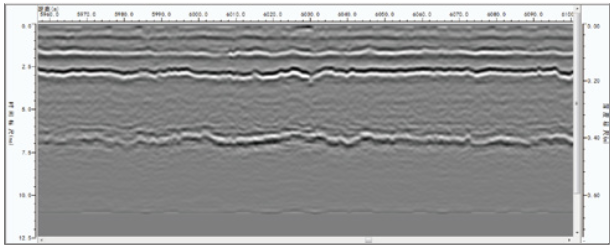

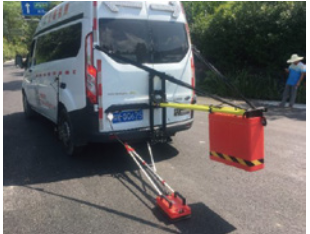

Road detection using GER900A ground penetrating radar01	Road detection with GER900A ground penetrating radar02	GER900A concrete thickness inspection data

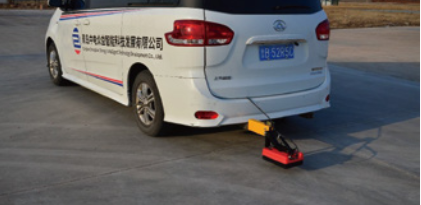

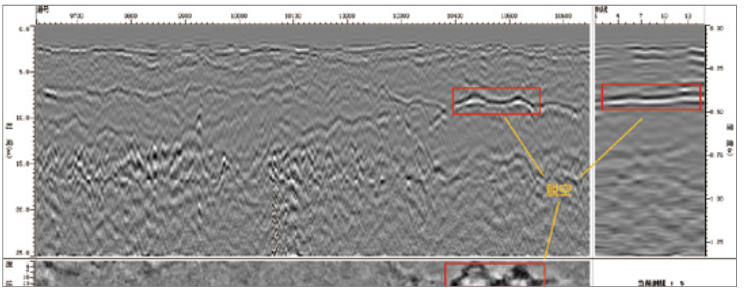

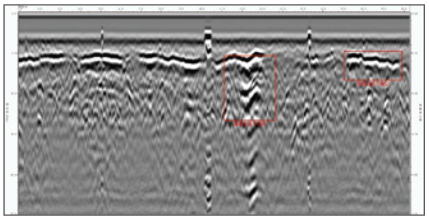

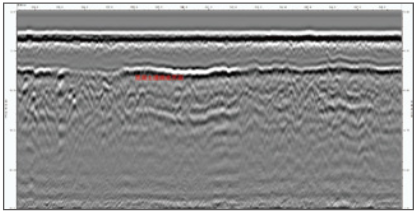

A high-speed GER900A antenna road structure detection	GER900A antenna is hollowed out under the concrete road slab	GER900A antenna concrete road slab underneath the void and void

In order to carry out three-dimensional and all-round detection of the road, multi-channel ground penetrating radar with antennas of different frequencies can be used to detect the road surface, structural layer and base layer of the road in an all-round way, so as to achieve the purpose of physical examination of various indicators of the road.

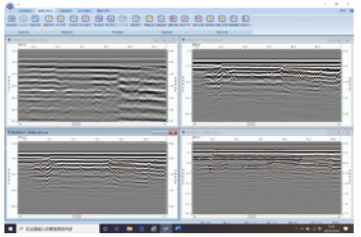

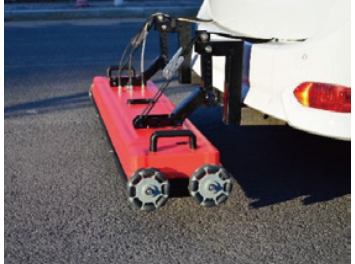

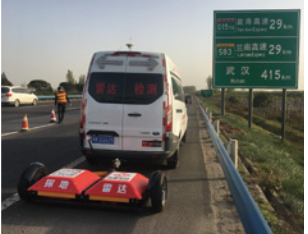

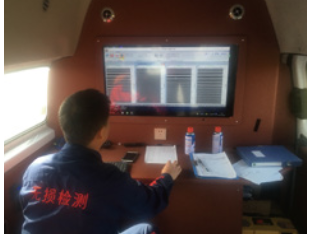

GER-40 four-channel ground penetrating radar Highway Detection	GER-40 type ground penetrating radar Road Acceptance Inspection	GER-40 Ground Penetrating Radar Data Acquisition	Four-channel GPR data

Three-dimensional ground penetrating radar is used to detect high-speed roads, accurately find the location, depth and area of road diseases, guide road maintenance, and solve road maintenance and maintenance Blindness that exists.

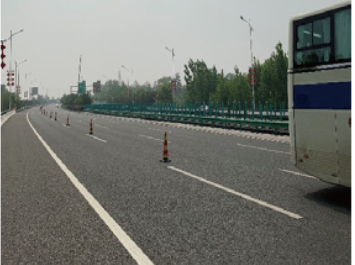

Xi'an Airport Expressway Maintenance Section Inspection Site 01	Xi'an Airport Expressway Maintenance Section Inspection Site 02	GER-MIMO900A14RS Xi'an Airport Expressway Maintenance Section Inspection Data

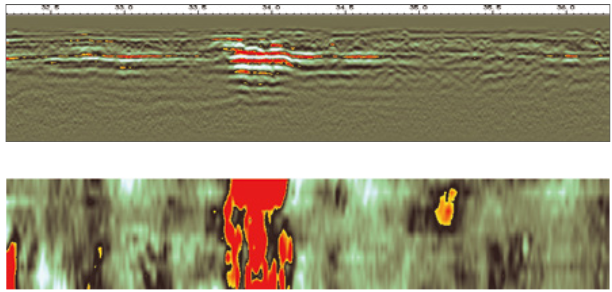

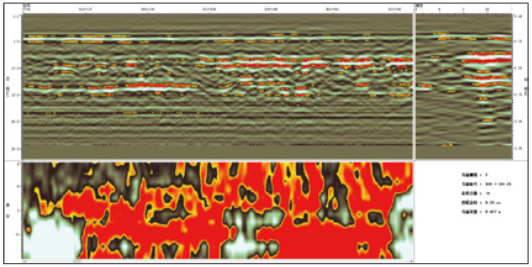

GER-MIMO900A14RS detection effect diagram 1 Highway hollowing	2D image (top) and 3D slice (bottom)|Disease type: non-dense and waterlogged

Xi'an Airport Expressway Four-lane Radar 3D Slice Overall Display (Z Depth 21cm)

Xi'an Airport Expressway Four-lane Radar 3D Slice Overall Display (Z Depth 41cm)
